SmartLyte
High-Volume Clinical Electrolyte Analyzer
The Most Advanced Electrolyte Analyzer

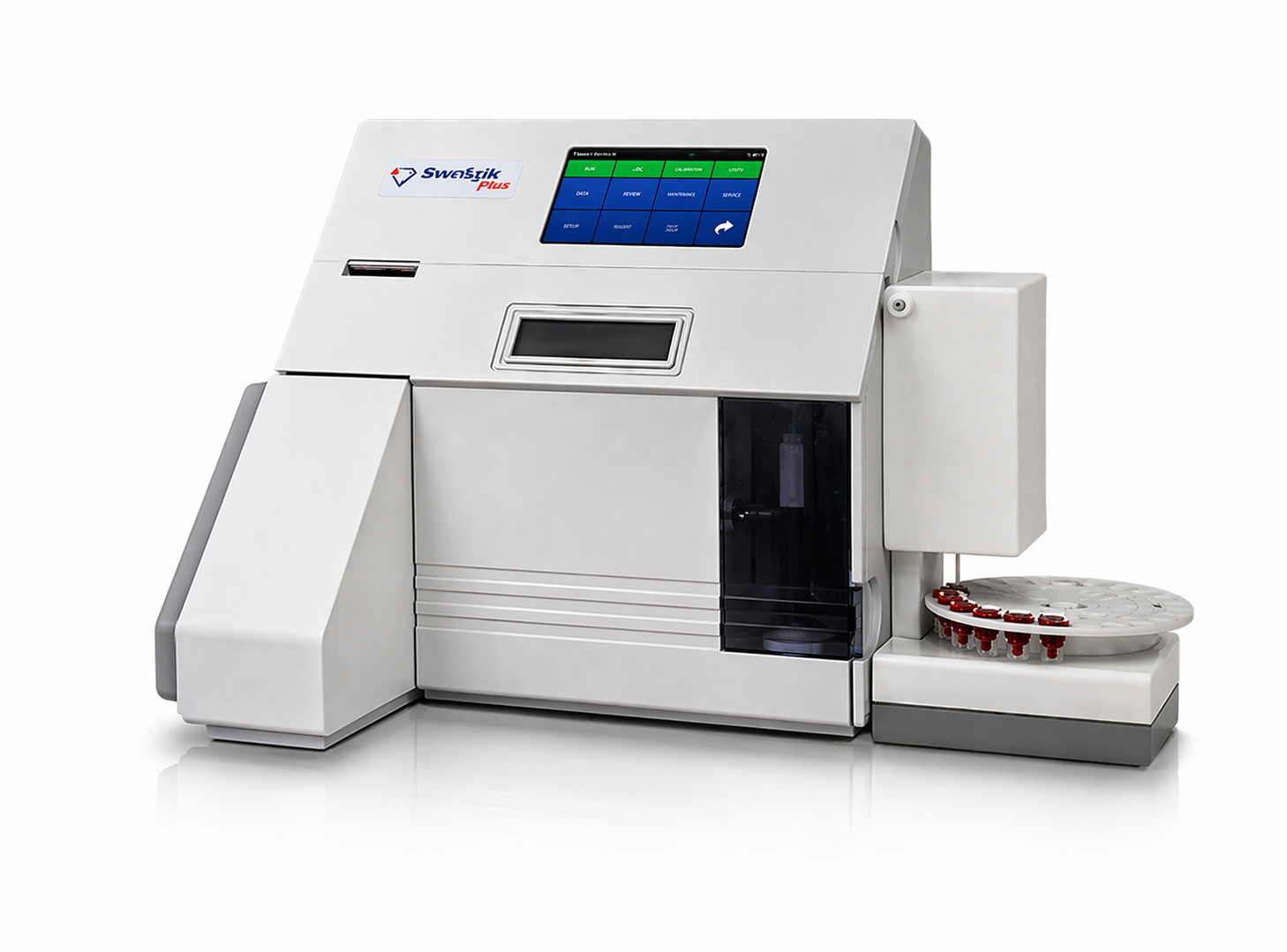

The Diamond Diagnostics SmartLyte® Plus Electrolyte Analyzer is a completely automated system measuring Na+, K+, Cl-, Ca++ and Li+ in whole blood, serum, plasma and urine utilizing Ion Selective Electrode (ISE) technology. The Diamond SmartLyte® Plus is uniquely designed with a powerful microprocessor allowing for easy interface with external LIS systems, operation with a new touch screen interface, bar code scanner and storage and retrieval of over 10,000 patient results. The system currently operates in over 12 languages and offers laboratories the option to utilize the analyzer for either human or veterinary applications.
Product features
Fastest Results • Large Storage Capacity • Advanced Functionality
User Input

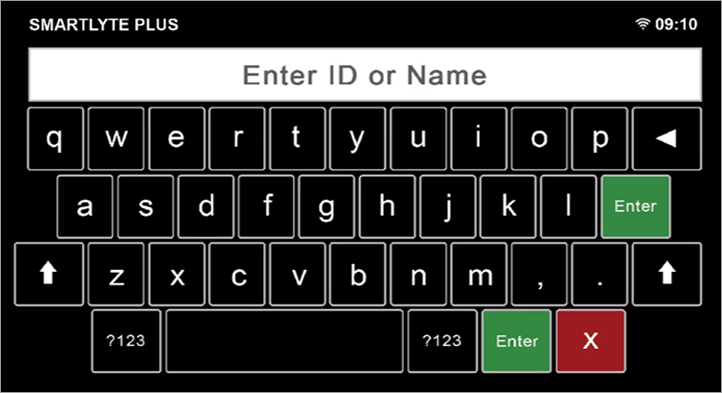

5” Touch Screen
Remote Access
Analysis Time
Calibration
2 Point every 4 hours
1 Point every sample
On Demand
Languages
English, 中文, Español,
Français, Deutsch,
Indonesia, Italian, 日本語,
Data Storage
10,000 Patient Results
10,000 QC Results per Level
Support
Sample Size
Whole Blood, Serum (95 µl)
Plasma, QCs (95 µl)
Urine (180 µl)
日本語, 한국어, Português,
Polskie, Русский, Türkçe
Connectivity
LAN, Wifi, 4 USB ports
RS232, LIS
Number of Parameters
Veterinary Options
Feline, Canine, Bovine,
Equine, Swine, Ovine,
Murine or Open

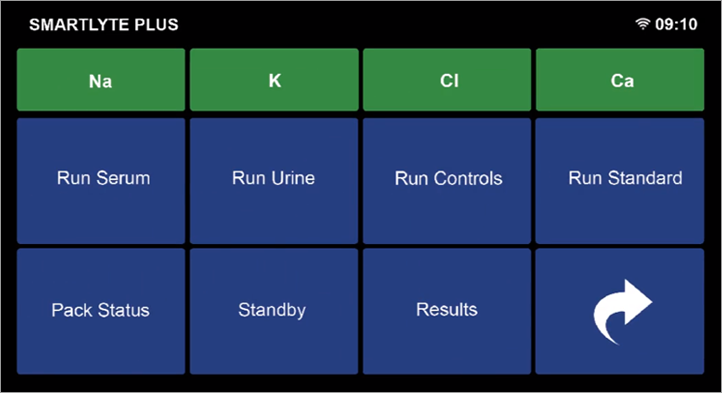

User Friendly Navigation
Extensive Onscreen Diagnostics

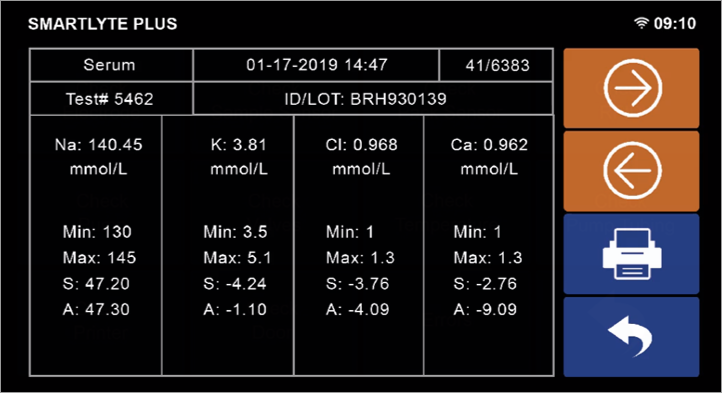

Simple Search Function
Easily Access Data and Results
Parameters and Specifications
Parameters
Range
Reproductibility
Resolution
Serum Na+
Serum K+
Serum CL-
Serum Ca++
Serum Li+
Urine** Na+
Urine** K+
Urine** CL-
40-200 mmol/L
1.7-15 mmol/L
50-200 mmol/L
0.3-5.0 mmol/L
0.2-5.5 mmol/L
3-300 mmol/L
5-120 mmol/L***
15-300 mmol/L
CV ≤ 1% (120-160 mol/L)
CV ≤ 1.5% (2.5-6 mmol/L)
CV ≤ 1% (85-130 mmol/L)
SD ≤ 0.02 mmol/L (0.8-1.5 mmol/L)
SD ≤ 0.03 mmol/L (0.4-1.3 mmol/L)
CV ≤ 5% (100-250 mmol/L)
CV ≤ 5% (100-250 mmol/L)
CV ≤ 5% (100-250 mmol/L)
0.1 mmol/L
0.01 mmol/L
0.1 mmol/L
0.001 mmol/L
0.001 mmol/L
0.1 mmol/L
0.01 mmol/L
0.1 mmol/L
*Typical Within Run (n=30) Blood, Serum, Plasma
**Calcium and Lithium are not typically measured in urine samples
***(60-120) requires additional dilution
Power
100-240V ~ 50/60 Hz
(self adjusting)
11.6 A max, 50 Watts max
Size & Weight
13.2 x 12.4 x 12 in
or 335 x 315 x 295 mm
14 lbs or 6 kgs
Ambient Conditions
Room temperature:
15-32°C/60-90°F
Humidity <85%
A cleaner, more confident way to deliver SmartLyte
The SmartLyte is our high-throughput electrolyte analyzer designed for busy clinical laboratories processing large volumes of electrolyte panels daily. With advanced ISE technology, automated sample handling, and comprehensive connectivity, the SmartLyte delivers consistent accuracy at speeds that match demanding laboratory workflows.
High-volume clinical laboratories require electrolyte analyzers that combine analytical precision with the throughput needed to process hundreds of samples daily without creating bottlenecks. The SmartLyte is engineered specifically for these demanding environments, delivering consistent, accurate results at speeds that keep pace with busy laboratory operations.
The SmartLyte uses advanced multi-channel ISE technology with direct potentiometry for simultaneous measurement of Na+, K+, Cl-, iCa++, and pH. Each channel uses precision-engineered electrodes with extended lifespans, reducing replacement frequency and operational costs.
Simple structure. Premium presentation. Clear buying path.
Consultation aligned to your workflow and facility goals
Installation planning, training, and handover guidance
Strong after-sales support for long-term confidence
Everything decision-makers need to understand SmartLyte
The layout is intentionally simple and scan-friendly, so technical buyers, management teams, and procurement stakeholders can evaluate value quickly.
120 Samples/Hour
High-throughput processing matching the pace of chemistry analyzers for consolidated laboratory workflows.
Random Access
Continuous sample loading with priority insertion for urgent specimens without interrupting the queue.
Barcode Automation
Automated sample identification with LIS integration for error-free result reporting and patient association.
Extended Electrode Life
Precision-engineered ISE channels with extended lifespans reducing replacement frequency and costs.
Quality Management
Multi-level calibration, Westgard rules, Levey-Jennings trending, and real-time performance monitoring.
Bidirectional LIS
HL7-compliant connectivity for automated orders, results, auto-verification, and reflex testing.
Built to create confidence before and after purchase
The page now highlights benefits in a way that feels premium but remains very easy to clone into WordPress and Elementor.
Process high volumes without bottlenecks
Prioritize urgent samples seamlessly
Automate result reporting with LIS integration
Reduce electrode replacement costs
Maintain quality with comprehensive QC
Conserve specimen with minimal volume needs
Clean, technical, easy to scan
A simple specs block keeps the product page professional without looking like a busy template.
Clear next steps from first conversation to go-live
The experience is structured to move enterprise buyers forward with clarity, not clutter.
Consultation
Understand your facility, volume, and operational priorities before solution planning.
Proposal
Present scope, system fit, and implementation direction in a decision-ready format.
Installation
Coordinate delivery, setup, commissioning, and training around your workflow.
Support
Stay backed by structured after-sales service and practical technical response.
Answering the final questions before conversion
These blocks keep the buying journey moving by addressing support, rollout, and compatibility concerns early.
What is included with SmartLyte?
The scope normally includes consultation, supply, installation, training, and after-sales support planning.
Can this work with our current setup?
Yes. Each deployment is reviewed against your existing workflow, infrastructure, and clinical priorities before execution.
Do you support teams after go-live?
Yes. We provide structured handover, operator training, and ongoing technical support for continuity.
Let’s make this product page feel as strong as the solution itself.
Book a discussion, request a proposal, or speak directly with the team.
