Automatic Multiple Slide Stainer

for routine staining

Histopathology laboratory use

System Advantages

Multi-function mode

  • Compact, space saving H&E stainer for routine applications. High specimen throughput.
  • Easy-to-clean and resistant surfaces made out of
    polyester epoxy resin and stainless steel.

Multi-function mode

  • Compact, space saving H&E stainer for routine applications. High specimen throughput.
  • Easy-to-clean and resistant surfaces made out of
    polyester epoxy resin and stainless steel.

Multi-function mode

  • Compact, space saving H&E stainer for routine applications. High specimen throughput.
  • Easy-to-clean and resistant surfaces made out of
    polyester epoxy resin and stainless steel.

Multi-function mode

  • Compact, space saving H&E stainer for routine applications. High specimen throughput.
  • Easy-to-clean and resistant surfaces made out of
    polyester epoxy resin and stainless steel.

Multi-function mode

  • Compact, space saving H&E stainer for routine applications. High specimen throughput.
  • Easy-to-clean and resistant surfaces made out of
    polyester epoxy resin and stainless steel.

Multi-function mode

  • Compact, space saving H&E stainer for routine applications. High specimen throughput.
  • Easy-to-clean and resistant surfaces made out of
    polyester epoxy resin and stainless steel.

Technical support and after sale

Histo-Line offers a complete technical support for you.

We find together the best solution for you and your
instrument in certain and quick times.

  • Technical Support Products: info@pkmec.com
  • Technical Support Equipments: 042-354-33-333

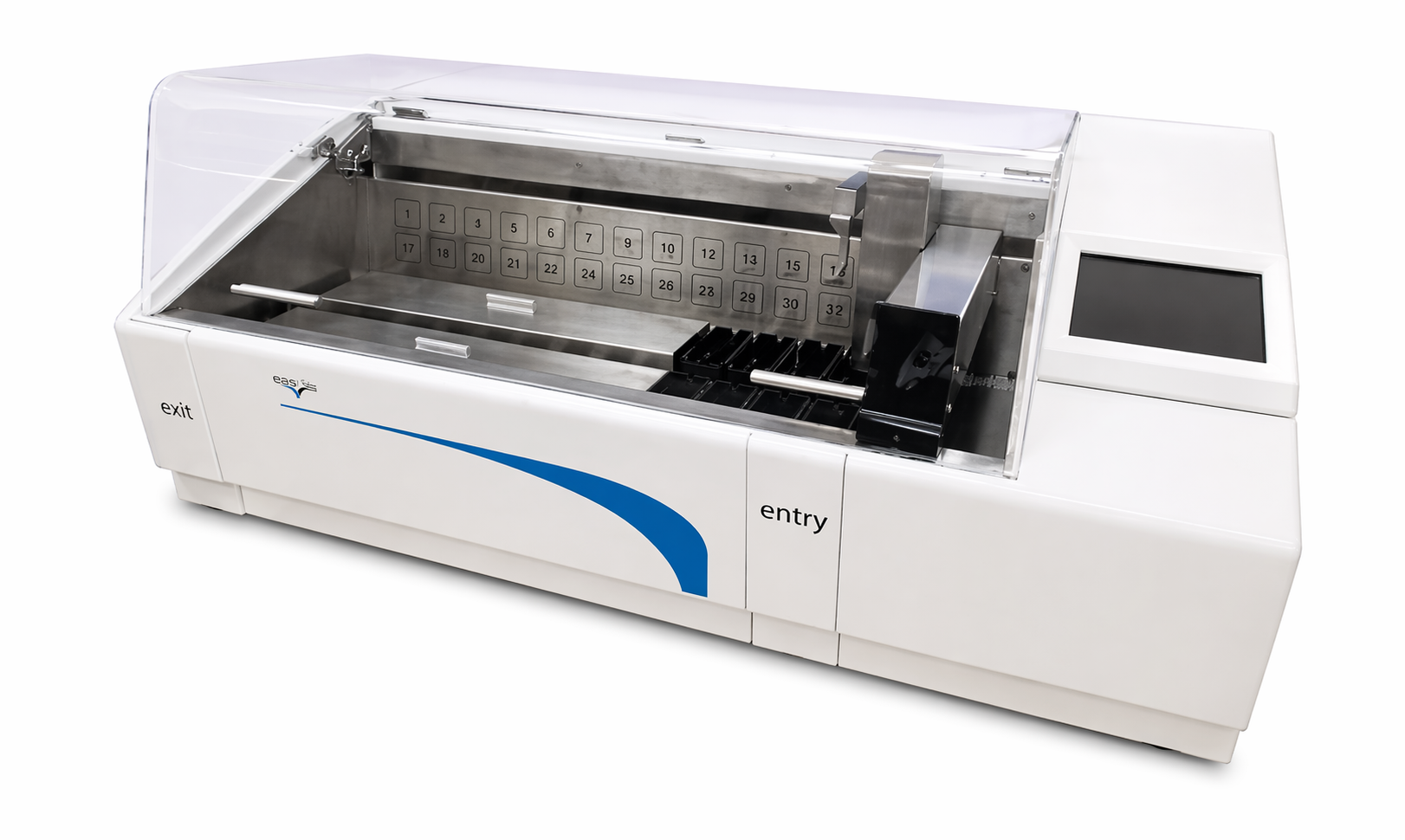

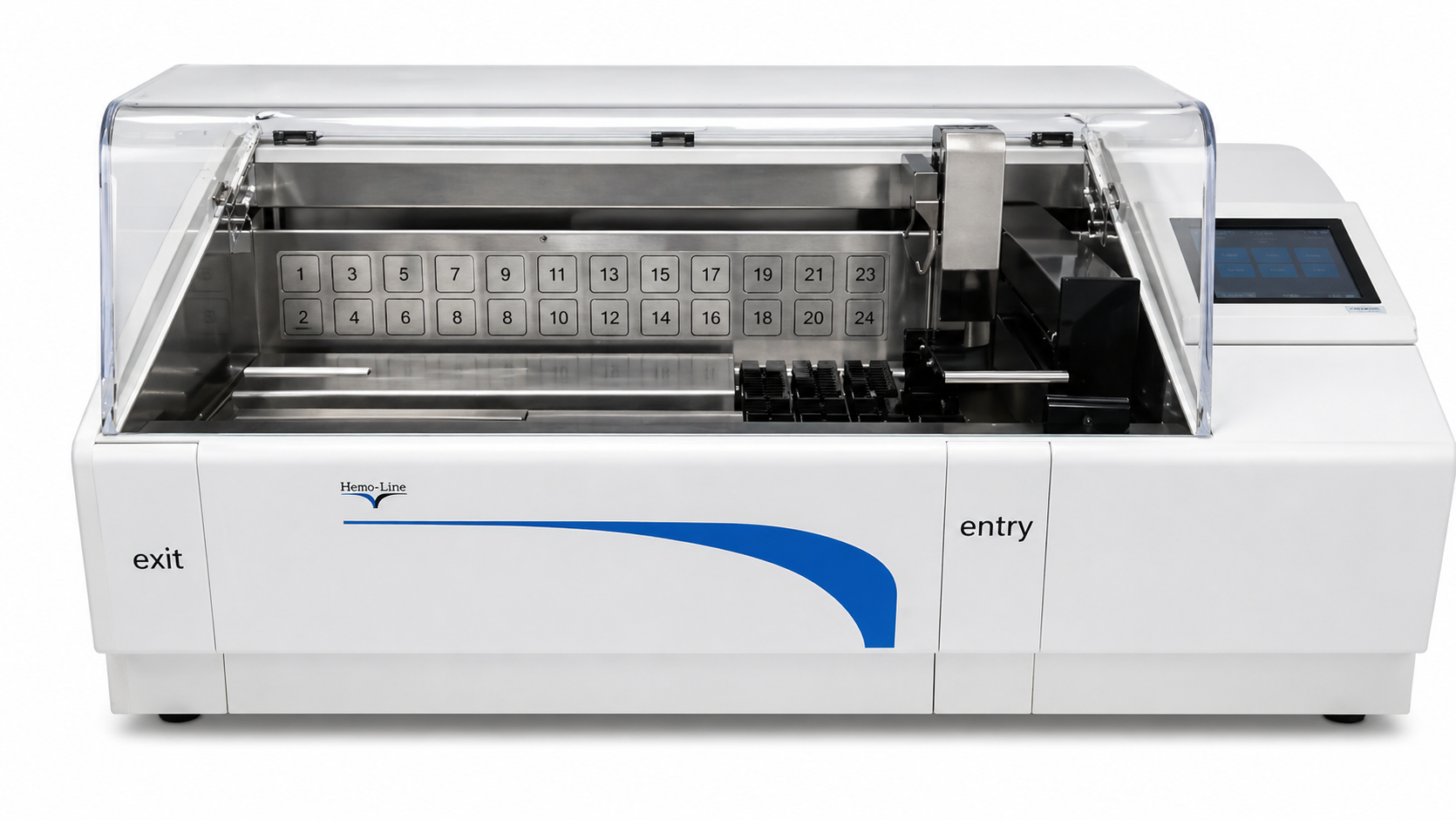

Automatic programmable routine stainer, designed for histology and cytology

Is an innovative, smart stainer for high flexibility and reliability

Only Advantages

Equipped with a photoelectric switch in a fixed position, able to memorize the position and automati- cally restores functions. Freely programmable functions like immersion and incubation times, agitation and the station sequence.

Without Breaks

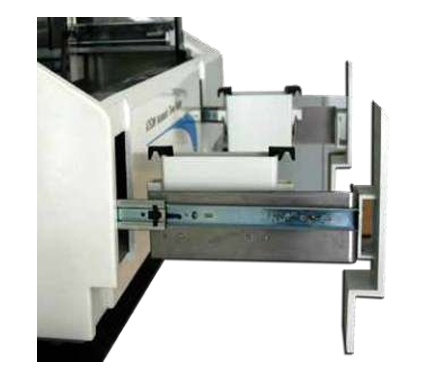

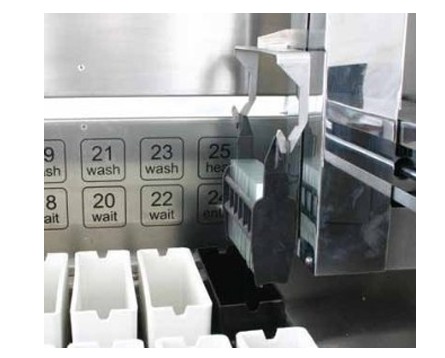

The ATS200 has an innovative continuous load and unload drawer access and robot arm system that lets you continue slide processing without stopping the instrument’s operation.

Without Breaks

The ATS200 has an innovative continuous load and unload drawer access and robot arm system that lets you continue slide processing without stopping the instrument’s operation.

Without Breaks

ATS2010

Automatic Slide Stainer

R53

Histo Stainer

Technical features

Productivity

Capacity: At least 200 specimen slides for hour (depend on the selected program)

Loading: 5 slides rack

Slide rack capacity: 30 specimen slides

Oven and temperature: 1, from ambient temperature to 85 C

Total reservoirs: 26

Software

Screen: Large touch screen liquid crystal display (LCD) 14"

Programs: 20 freely settable up to 50 programs steps each

Incubation time setting: From 0 sec. up to 9999 sec.

Temperature accuracy: ± 1C

UPS: In order to carry out the work during power failure.

Max. delay time: 99 hours , 59 minutes.

Reagent capacities

Number of stations: 26

Number of Reagent Stations: 18

Reservoir volume: 600 ml

Load/unload stations: 1 each

Number of wash stations: 3

Number of wait stations: 3

Fume extraction system: Charcoal filter and smoke

Temperature cleaning reagents: 50°C - 65C

Filling / drain time: Up to 5 min

Size and weight

Width: 120 cm

Depth: 50 cm

Height: 60 cm

Weight: 110 kg

Technical data

Power supply: 220V ~ 50Hz or 110V ~ 60Hz

Relative humidity: 10 to 80%

Maximum power draw: 300 W

Regulatory

CE: IVD
