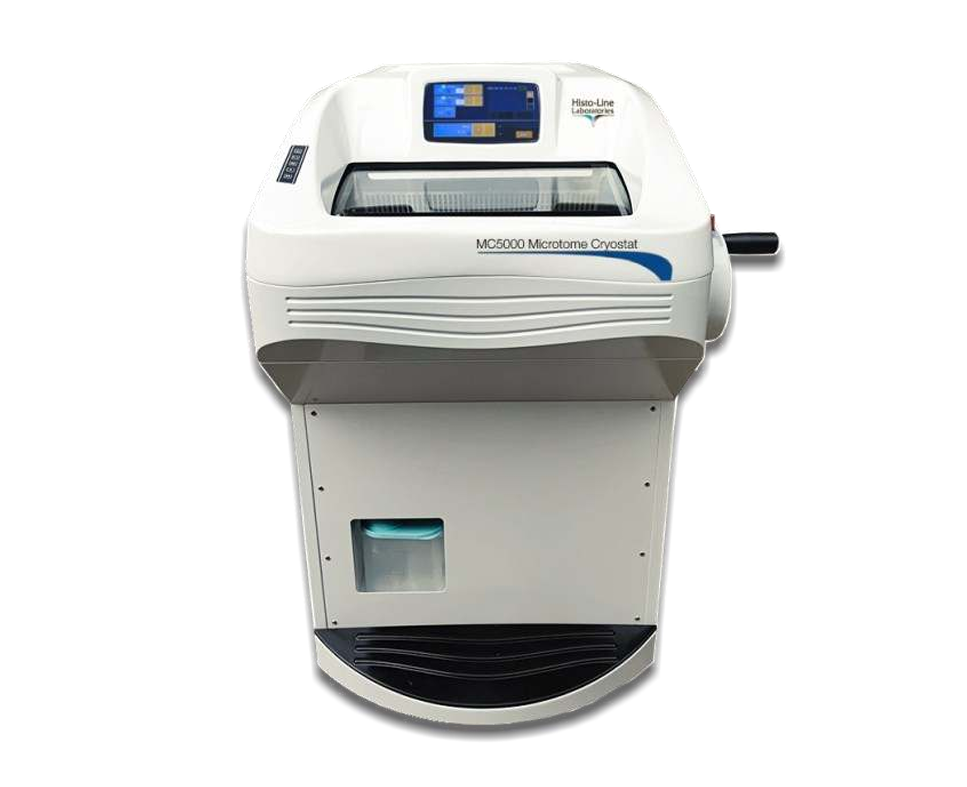

Microtome Cryostat Dual Compressor
for histological samples
Simple, reliable and cost-saving cryotomy
System Advantages

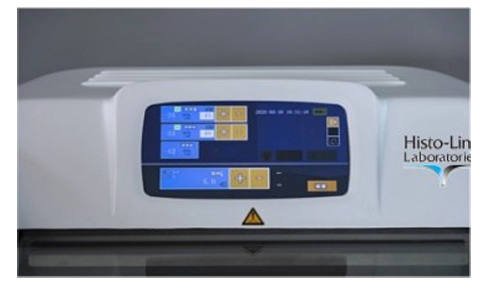

Ergonomic design provides easy accessibility
Easy and intuitive control panel allocated in front of operator where it can test and check all the parameters: cryochamber, specimen, shelter and peltier.
The precision to cut
Microtome cryostat double compressor for cut quality sections with consistent thickness, supported by the microtome’s precision step motor.
Stable and without vibrations
A fully encapsulated microtome reduces the time to clean the cryostat significantly.
Anti-roll integrated
Orientable head. Allows uniform orientation and perfect
alignment of the sample.

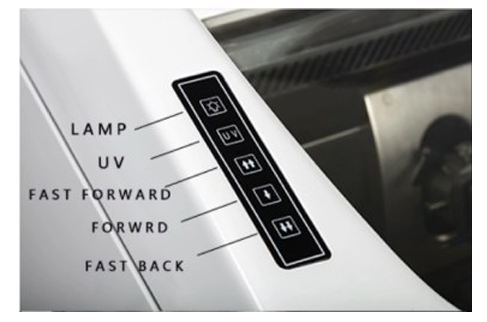

Easy to use, easy to work
Single function keys and easily readable displays
provide all relevant functions literally at the “push of one
button”.
High performance
- Defrost automatic with hot gas defrost, automatic defrost cycle/24 hours, time-controlled.
- Liquid condensate and waste are collected in a condensate bottle, easy to remove and to clean.
Reduce risk of cutting injuries
The hand wheel can be locked at any position, so as
to ensure the safety of the operation.
Technical support and after sale
Histo-Line offers a complete technical support for you.
We find together the best solution for you and your
instrument in certain and quick times.
- Technical Support Products: info@pkmec.com
- Technical Support Equipments: 042-354-33-333

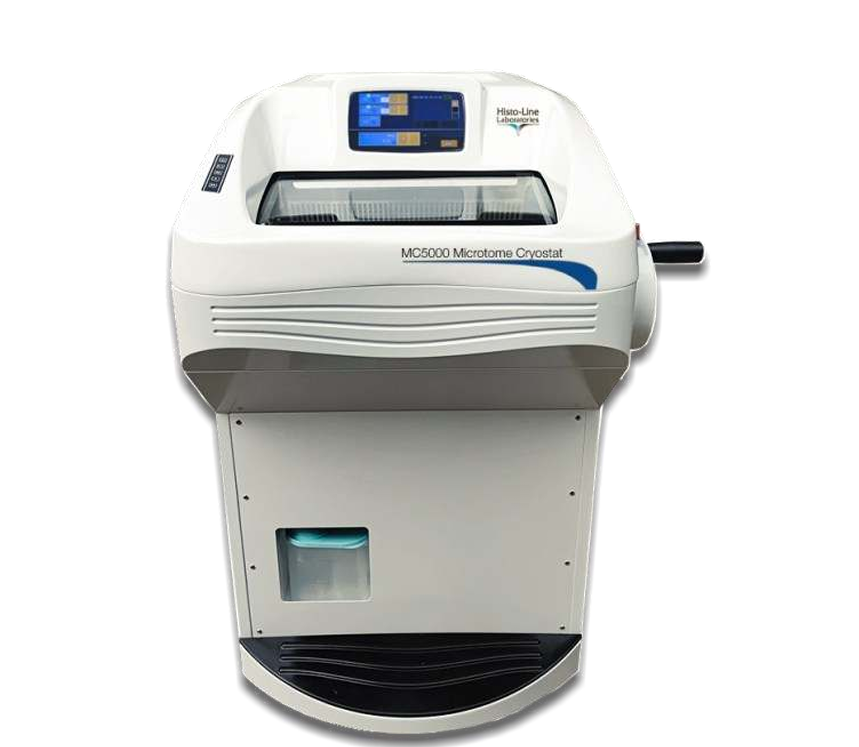

The Cryostat, designed for clinical and research procedure
Is an innovative, smart tissue cryostat for routine histopathology applications with UVC for increased user safety
Safety first

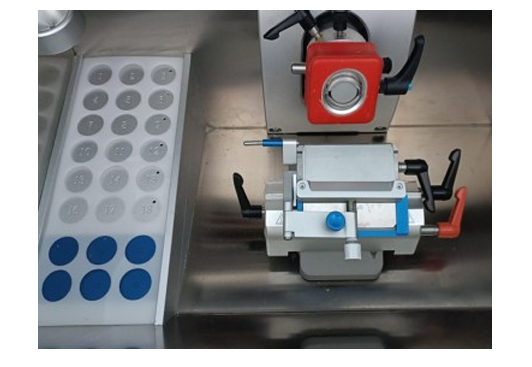

Accurately align the block face to the blade edge, using the specimen orientation system with zero-position centering.
The blade ejector and magnetic brush enable the user to safely remove the blade from the blade holder without touching it.
Blade holder with adjustable cutting angle to the use of any type of disposable blades.
Protection through UV disinfection
The UVC disinfection option is active against a broad variety of bacteria, fungi, and viruses, including SARS- CoV-2. When the cryostat is urgently needed during disinfection, simply open the glass door and start your work.
Fast to work
Quick freeze with freezing shelf and a Peltier element, providing additional cooling down to-60°C below . Anti-fog and thermally insulating glass
Histo-Line complete range of solutions for Cryotomy
MC4000
Microtome cryostat
Dual compressor
MC5050
Microtome cryostat
Semi automatic
Technical features
Microtome
Section thickness range: 0,5 ~ 100 um
0,5 to 5 um in 0,5 um increments
5 to 20 um in 1 um increments
20 to 40 um in 2 um increments
40 to 100 um in 5 um increments
Trimming thickness range: 10 ~ 600 um
10 to 50 um in 5 um increments
50 to 100 um in 10 um increments
100 to 600 um in 50 um increments
Cryostat
Refrigerating capacity: 690 W
Chamber temperature: 0C ~ -50C adjustable
Incubation time setting: From 0 sec. up to 9999 sec.
Specimen temperature: -10C ~ -45C adjustable
Defrosting: Manual/automatic programmable (24h, duration 9 min.)
Freezing plate temperature: -50C
Number of freezing station: 18
Peltier numbers: 6 a ~- 60C
Refrigerant: R404a, 300g±10g
Compressor oil: 0.6L EMKARATE RL-22S, ICI
Vertical stroke
65 mm
Horizontal feed
25 mm
Retraction
Specimen retraction: 0,5-100 um (0.5 um increments, can be deactivated).
Maximum spiecimen
80 X 55 mm
Spiecimen orientation
Horizontal: 8, vertical: 8, rotation 360°
Specimen fast moving speed: Fast 900 um/s Slow 450 um/s
Size and weight
Width: 760 mm (705 mm without hand wheel)
Depth: 700 mm
Height: 1160 mm
Weight: 135 kg
Technical data
Power supply: 220V ~ 230V at 50 ~ 60Hz
Relative humidity: 10 to 80%
Maximum power draw: 850 V/A
