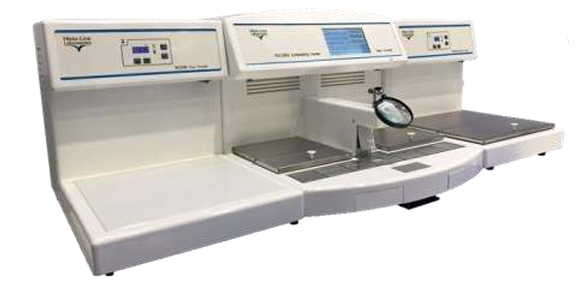

Tissue Embedding Center
Workstation for histological samples
Easy design for greater workflow
System Advantages

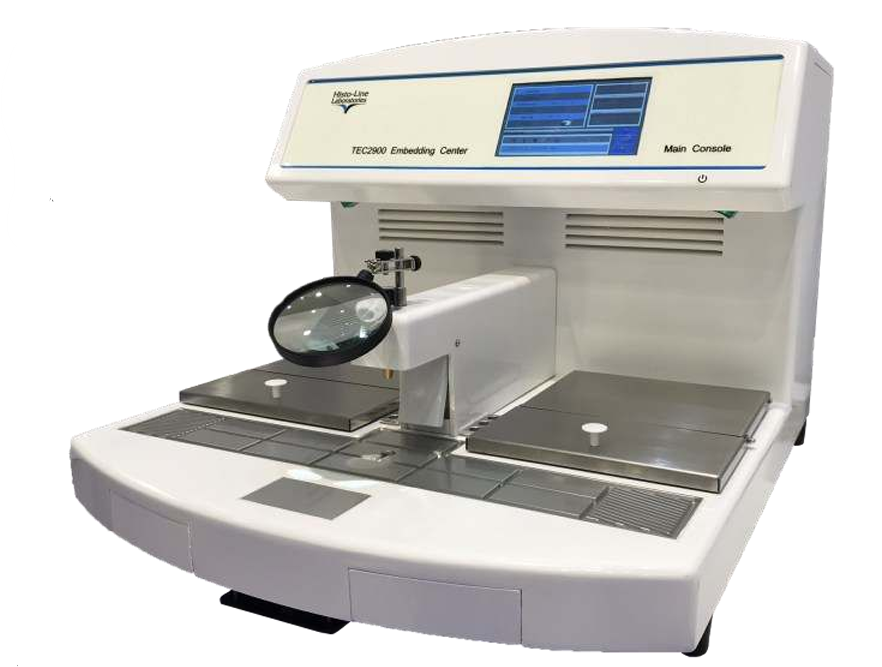

Main Console - Embedding module touch Screen
Bright Illumination
Large, easy-to-read touch screen display allows
quick access to the temperature controls and oth-
er parameters. Lighting intensity is easily user ad-
justable.
Designed for your needs
Programmable daily/weekly switching on and
off. It can be set heating automatically from
Monday to Sunday as user requirement timing.
High Capacity
The high capacity of the embedding workstation can keep up with even the biggest laboratories. The symmetrical workspace allows you to keep your cassettes, molds and other accessories warm and at hand for a smoother workflow.
Vapors Treatments
- Compact, space saving H&E stainer for routine applications. High specimen throughput.
- Easy-to-clean and resistant surfaces made out of
polyester epoxy resin and stainless steel.
Pedal for dispensing
Paraffin dispensing nozzle controllable via hand switch or foot pedal
Technical support and after sale
Histo-Line offers a complete technical support for you.
We find together the best solution for you and your
instrument in certain and quick times.
- Technical Support Products: info@pkmec.com
- Technical Support Equipments: 042-354-33-333

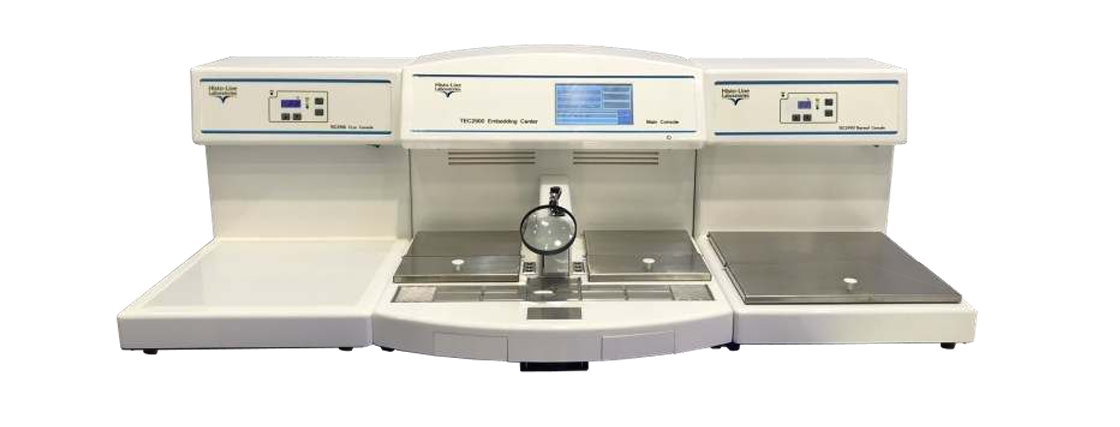

Tissue Embedding Center
We designed an embedding system that meets your needs
For every use
The tray is designed to be compatible with many baskets, and allows for efficient access to cassettes and molds, resulting in smooth embedding batches.

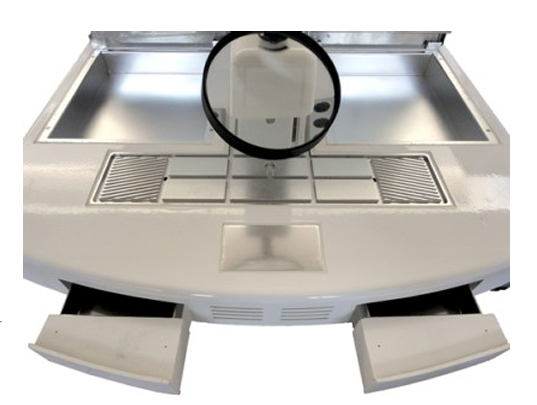

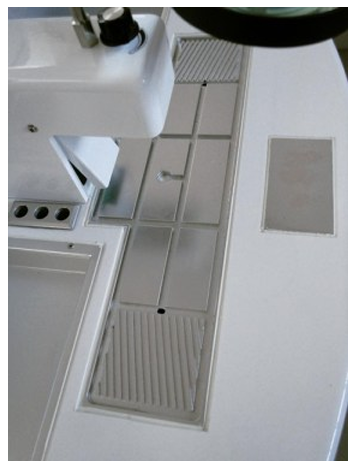

Wide space
The large work surface allows draining of the excess paraffin into two large waste trays and allows processing many cassettes at the same time. Integrated heated block trimmer.
Reliable design
Uniquely designed with microprocessor tempe- rature sensors, each single console which maxi- mizes space utilization, multifunctional worksta- tions.
Tissue Embedding Center
to make working procedures fast, and above all comfortable Is an innovative, modular solution for paraffin embedding of tissue
for histological samples

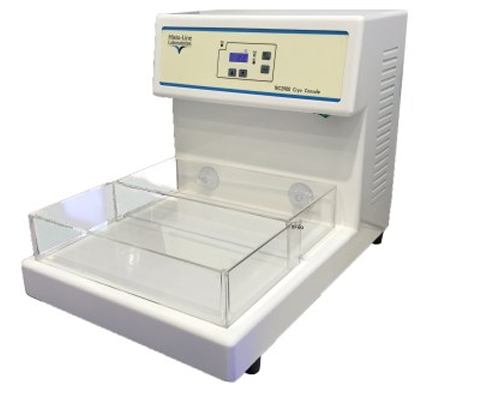

Cryo Console - Cool plate
Cold immediately
The Cryo console is composed of a compressor cooled work surface held to chill the paraffin blocks rapidly. The teflon coating allows a minimum ice formation and easy cleaning.
Indipendent module
May be placed beside microtome up to user operating habit. Equipped with a plexiglass lid that can be opened from the front, which allows the creation of a cold area capable of containing verti- cally stacked blocks, tripling capacity.

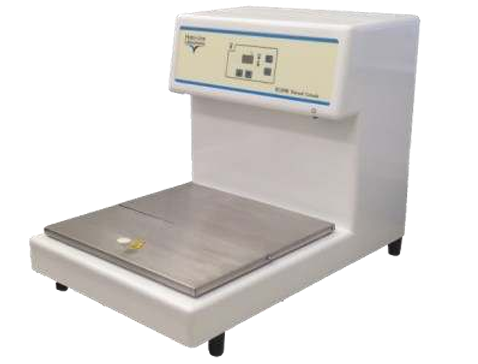

Thermal Console Standard

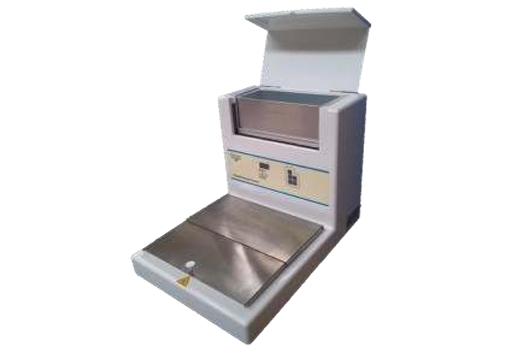

Thermal Console Double Floor
High Capacity for High Efficiency
Thermal Console double floor Is equipped with two chambers, for high capacity. In the upper chamber is allocated a removable container to put cassettes or basket coming directly from any tissue processor.
The lower chamber, with removable tray, is used to maintain the tissue specimens in their individual cassettes at the proper temperature while awaiting embedding.
Spacious Tray Removable
Thermal Console is designed to allow the heating and short-term storage of biological samples or mold.
Can contain up to 4.8 Lt of paraffin and be removed for transport and easy cleaning. The metal cover can be easily fully or half opened.
Technical features
Main Console TEC 2900T-1
Programming: Working days and times can be set for automatic weekly/daily on/off.
Lighting: Double strip Light-blue LED anti-glare, adjustable.
Vapours treatments: Activated charcoal filter.
Reservoir capacity (liquid paraffin): 6 Lt
Trays for cassette /mold capacity: 1,8 Lt
Working temperatures: 30° ~ 75C
Cold spot: Until supermega cassettes; temperatures ~ – 10C
Accessories included: Foot pedal switch for paraffin flow.
Nominal supply: 220 V/50 Hz or 110 V/60 Hz
Maximum power draw: 1000 V/A
Dimensions: W60xD65xH46 cm
Weight: 30 kg
Cryo Console TEC2900-2
Capacity: About 80 cassettes standard dimension
Working temperatures: Form ambient to-20C
Accessories included: Plexiglas cover
Nominal supply: 220 V/50 Hz or 110 V/60 Hz
Maximum power draw: 200 V/A
Dimensions: W41xD63xH44 cm
Weight: 24 kg
Thermal Console TEC2900-3
Working temperatures: Form ambient to 85°C
Removable lower basin: 330x330x50 mm ~ 3 Lt of paraffin
Nominal supply: 220 V/50 Hz or 110 V/60 Hz
Maximum power draw: 300 V/A
Dimensions: W41xD63xH44 cm
Weight: 9 kg
Thermal Console double floor TEC2900-4
Working temperatures: From ambient to 85°C
Removable upper basin: 320x205x100 mm ~ 5,5 Lt of paraffi
Removable lower basin: 330x330x50 mm ~ 3 Lt of paraffin
Nominal supply: 220 V/50 Hz or 110 V/60 Hz
Maximum power draw: 300 V/A
Dimensions: W41xD63xH44 cm
Weight: 9 kg
Regulatory
CE-IVD
Automatic Multiple Slide Stainer
for routine staining
Histopathology laboratory use
High Capacity for High Efficiency

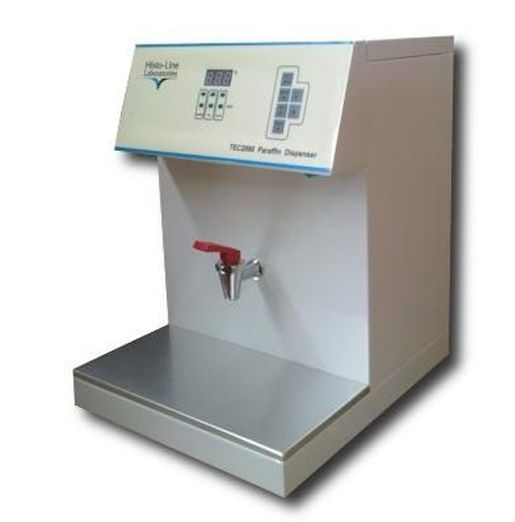

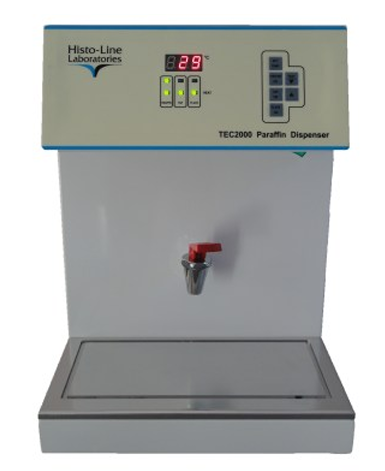

TEC2000 is a microprocessor-controlled paraffin dispenser.
It is designed for liquid paraffin dispensing in pathology or research laboratories.
Temperature can be set from “ambient” to 80°C with 1°C steps on three different areas: reservoir, work surface and dispenser tap.
Ideal for small workloads to have paraffin liquid on hand at all times.
Technical features
Tank capacity: 5 liters
Working temperature: from ambient ~ 80°C in 1°C increments
Temperature control: tank, work surface and dispenser tap
Temperature accuracy: ± 1C
Technical data
Power supply: 220V~ 50Hz or 110V~ 60Hz
Relative humidity: 10 to 80%
Maximum power draw: 500 V/A
Size and weight
Width: 400 mm
Depth: 300 mm
Height: 370 mm
Weight: 10 kg

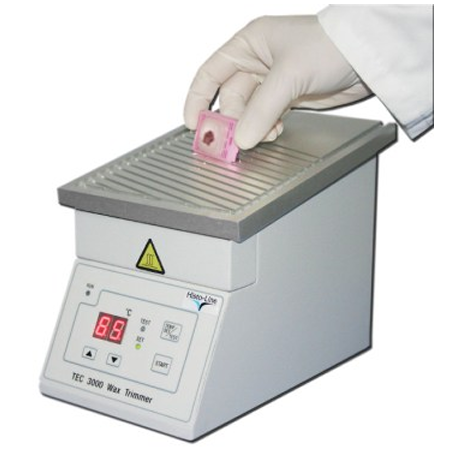

Histo Trimmer
Designed to remove excess paraffin from cassettes
Simple, clean, brilliant
Easy-to-use cleaning

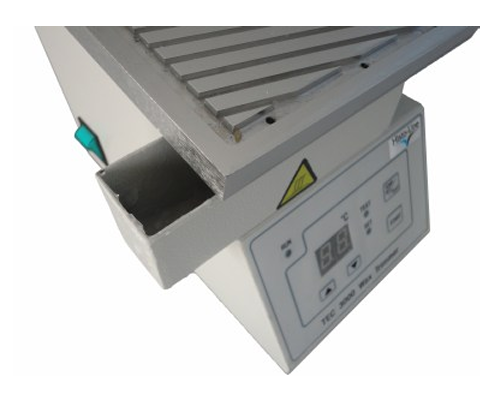

TEC 3000 Histo Trimmer is a practical unit designed to remove excess
paraffin from cassettes after the embedding procedure.
Just rub the edges of the cassette on the heated surface to obtain a
block free of burns and ready to be inserted into the clamp of the microtome.
The temperature can be set from ambient up to 70°C and monitored by the control panel.
The heated and removable tray allows the recovery of melted paraffin
and the easy cleaning operation.
Temperature range
Working temperature: From ambient 30° ~ 70°C increments in 1°C increments
Temperature accuracy: ± 1°C
Technical data
Power supply: 220V ~ 50Hz or 110V ~ 60Hz
Relative humidity: 10 to 80%
Maximum power draw: 200 V/A
Size and weight
Width: 220 mm
Depth: 160 mm
Height: 170 mm
Weight: 2,5 kg

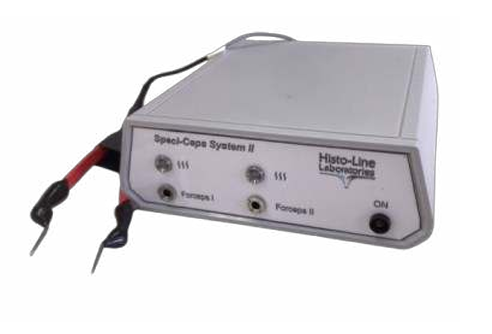

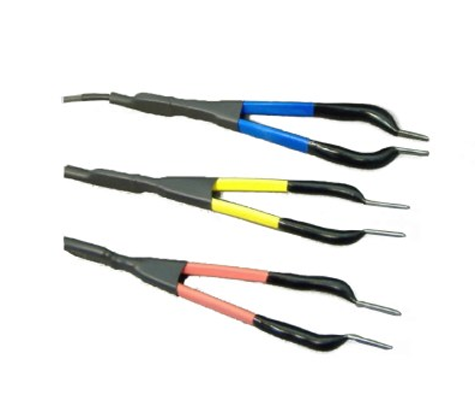

Histo Clip heated forceps
For the inclusion of anatomical pieces
Simple, inexpensive, reliable
Designed for your needs
The Histo clips are electric heated forceps that allow you to perform the inclusion of anatomical pieces in paraffin without contamination during the operation.
The temperature is fixed at 62 ± 2 ° C effectively eliminating the overheating and consequent tissue damage.
The Histo clips is equipped with a unit of low-voltage control for operator safety. It has a dual input that allows the connection of two heated clamps of different sizes at the same time.
Three different sizes are available for different applications:
- Code. HL4057 – tweezers thickness of 1 mm
- Code HL4058 – tweezers thickness of 2 mm
- Code. HL4059 – tweezers thickness of 4 mm
Temperature range
Working temperature: Is fixed at 62 ± 2 °℃
Temperature accuracy: ± 1°C
Technical data
Power supply: 220V ~ 50Hz or 110V~ 60Hz
Relative humidity: 10 to 80%
Maximum power draw: 12 W
Size and weight
Power supply size: 155 x 135 x 65 mm
Length Tweezers: 150mm
Automatic Multiple Slide Stainer
for routine staining
Histopathology laboratory use
Only AdvantagesEmbedding Center system advantages
Great sections rely on careful embedding. Histo-Line embedding solutions help you ensure correct tissue orientation, avoid heat damage, and create the ideal block shape. Setup a Histo-Line embedding center to match your workflow, choose productivity enhancing accessories and select base molds that match your cassettes
Main Console
| Peculiarity | Main Console TEC2900T-1 |
|---|---|
| System Vapor treatments | X |
| Module separable | X |
| Automatic switching on and off daily or weekly | X |
| High Capacity paraffin reservoir (6 Lt) | X |
| Light-blue LED | X |
| Programmable intensity LED | X |
| Magnifying glass | X |
| Touch screen display | X |
| Cold spot for macro cassette autonomous | X |
| Foot Switch | X |
| Heated forceps 1 mm, 2 mm, 4 mm | Optional |
| Proximity sensor | Optional |
Embedding Center Modules
| Peculiarity | TEC2900T-1 | TEC2900-2 | TEC2900-3 | TEC2000 | TEC2900-4 | TEC3000 |
|---|---|---|---|---|---|---|
| Adjustable temperature | X | X | X | X | X | X |
| Programmable | X | |||||
| Teflon surface | X | X | ||||
| Microprocessor control | X | X | X | X | X | X |
| Parts removable | X | X | X |
